Product Details

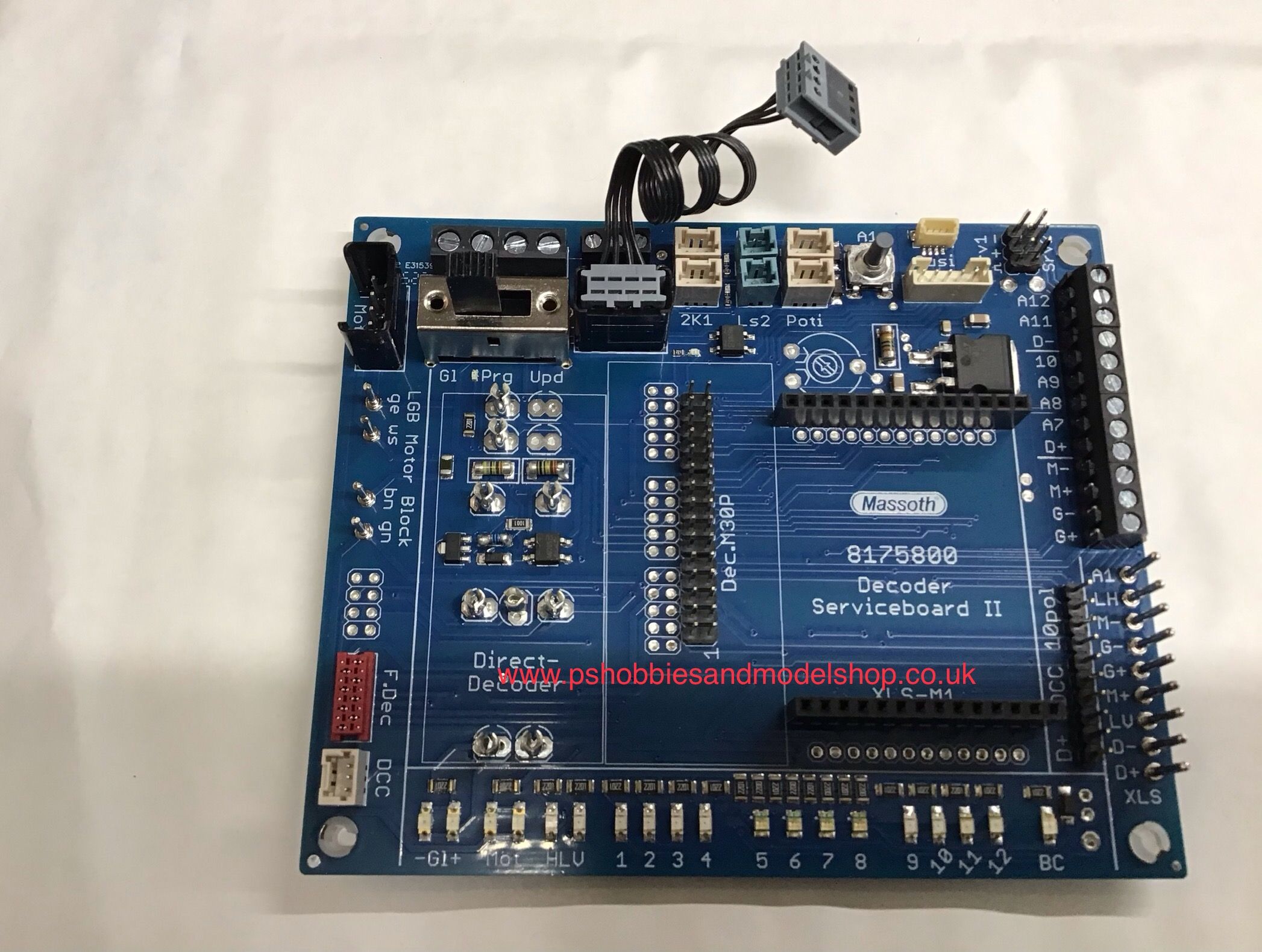

8175800 DiMAX Decoder Service board II
Do you own one or two digital locomotives? You like to program decoders according to your ideas? You are a member of a G scale club? You are a model railroad dealer with the best service for your customers? Then the new Decoder Service board is an important tool for you. The revised Decoder Service board offers different interfaces for the digital model railroader. It can be used to program and test almost all garden railroad decoders on the market. Plug-in connections for loudspeakers, uncouplers, servos and the SUSI bus as well as screw terminals for the power connection and the motor are a matter of course. LGB gearboxes, voltage buffers (3 pole), and many other components can be connected directly.
The Service Board offers the following interfaces and components, among others:
- eMOTION L & LGB direct decoder 55020, 55021
- eMOTION 8FL function decoder (LGB function decoder interface)
- eMOTION XLS / XL / XXL
- eMOTION XLS-M1 (Märklin track 1 interface, 28-pin)
- eMOTION M30P (future use)
- MASSOTH function drive interface (uncoupler, pantograph drive, etc.) including test button
- LGB 55027 (DCC interface, 10-pin)
- universally usable screw terminals for any commercially available DCC decoder
- loudspeaker
- servo
- clock generator
- reed contact
- Connection for traction current (analog/digital)
- Connection for programming track
- Connection for SUSI
- and much more
- XLS-P, PluG, NEM 652 provided, but not equipped
